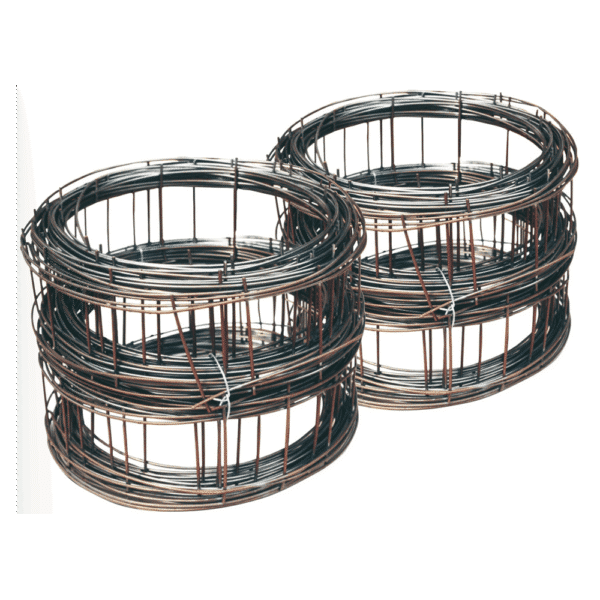

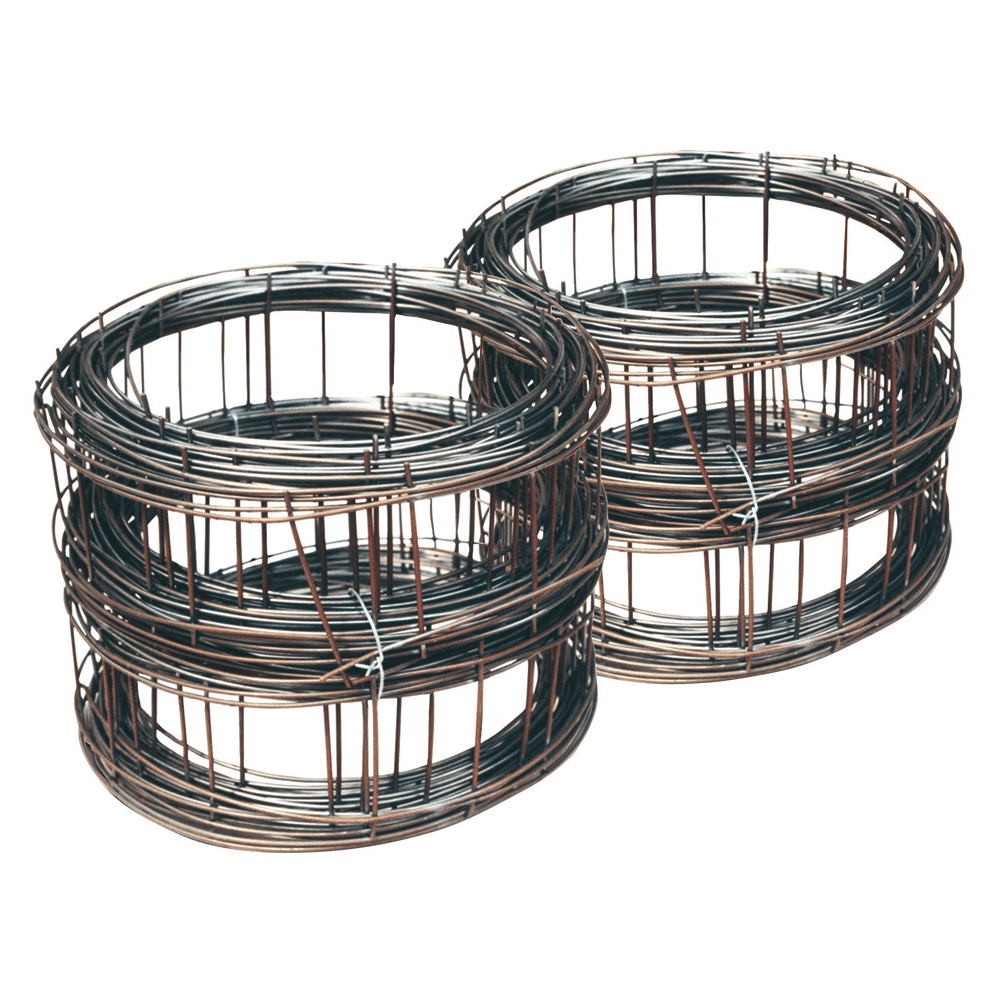

Brick Force 75mm x 15m – Heavy-Duty Reinforcement Mesh
The Brick Force 75mm x 15m is a high-strength, non-NHBRC steel reinforcement mesh designed to improve the stability and crack resistance of brick and block walls. Constructed from galvanized steel with staggered bar configuration, this brickforce is ideal for both residential and commercial masonry projects—available now at BuildersStoreSA.com.
1. Product Overview
This 15 metre roll of Brick Force 75mm x 15m is engineered to strengthen masonry coursing, preventing shrinkage and thermal cracking while improving structural integrity. Although non-NHBRC rated, it’s widely suitable for interior walls, boundary walls, retaining walls, and garden constructions.
2. Key Features & Specifications
- Mesh Size: 75mm bar spacing for moderate reinforcement
- Length: 15 metres of continuous roll
- Material: Galvanized steel for rust protection
- Thickness: 4 mm diameter bars (hot-rolled steel)
- Weight: Approx. 9–11 kg per roll
- Configuration: Staggered overlap design to enhance bond strength
- Compliance: Non-NHBRC, for non-structural wall applications
- Packaging: Coil format for easy transport and storage
3. Benefits & Applications
- ✅ Crack Control: Reduces shrinkage and thermal cracking in masonry.
- ✅ Load Distribution: Reinforces brick and block runs for added stability.
- ✅ Cost-Effective: Reinforcement at minimal additional cost.
- ✅ Easy to Install: Simple wire positioning in mortar bed—no special equipment needed.
- ✅ Versatile Use: Ideal for retaining walls, garden walls, boundary walls, and interior dividing walls.
- ✅ Enhanced Wall Durability: Extends service life of masonry structures.
4. Installation Guidelines
- Lay brickforce in every 2nd or 3rd course of bricks/blocks.
- Embed in a 5–10mm mortar bed for proper coverage.
- Overlap brickforce by 225mm at wall corners and joints.
- Cut with heavy wire cutters to desired lengths.
- Ensure roll is flat and tension-free before embedding.
5. Technical Specifications Table
| Attribute | Specification |
|---|---|
| Length | 15 metres |
| Mesh Spacing | 75 mm |
| Bar Diameter | 4 mm |
| Material | Galvanized Steel |
| Weight (approx.) | 9–11 kg |
| Compliance | Non‑NHBRC / non-structural |
6. External & Internal Links
External Resource: Learn more about masonry reinforcement methods on the Designing Buildings Wiki.
Related Products:
7. Frequently Asked Questions
Q: Is this suitable for load-bearing walls?
A: No — this non-NHBRC brick force is designed for non-structural wall reinforcement only.
Q: How often should it be embedded?
A: Recommended every second or third mortar course for effective crack control.
Q: Can the roll be reused?
A: Yes — if cut into manageable lengths, unused sections can be coiled and stored.
8. Final Thoughts
The Brick Force 75mm x 15m mesh roll is an efficient, practical solution for reinforcing brick and block walls. With its galvanized finish, moderate mesh spacing, and easy installation, it enhances wall strength and crack resistance—perfect for boundary, garden, and load-adjacent walls. Purchase today at BuildersStoreSA.com and build with confidence.
